Ultra-Therm Plate Heat Exchangers are a range of gasket and brazed plate heat exchangers offered by FluidPro Pty Ltd.
With over 30 years of combined industry experience in heat exchanger design and manufacturing Ultra-Therm is a market leader in the heat exchangers, producing quality heat exchangers for every commercial and industrial application.
About Plate Heat Exchangers
A plate heat exchanger is a device designed to transfer heat between fluids of varying pressures. Plate exchangers are an effective way of regulating temperatures, heating and cooling of a variety of liquids. A plate heat exchanger transfers heat between fluids using different plates as hot and cold mediums. They are the most common form of heat exchanger used in a variety of industrial applications.
Ultra-Therm plate heat exchangers are available in two varieties: gasket plate heat exchangers and brazed plate heat exchangers.
A gasket plate heat exchanger is a popular type of plate heat exchanger, which consists of corrugated gasket plates placed between two frames to transfer heats between liquids.
Working Principle of a Plate Heat Exchanger

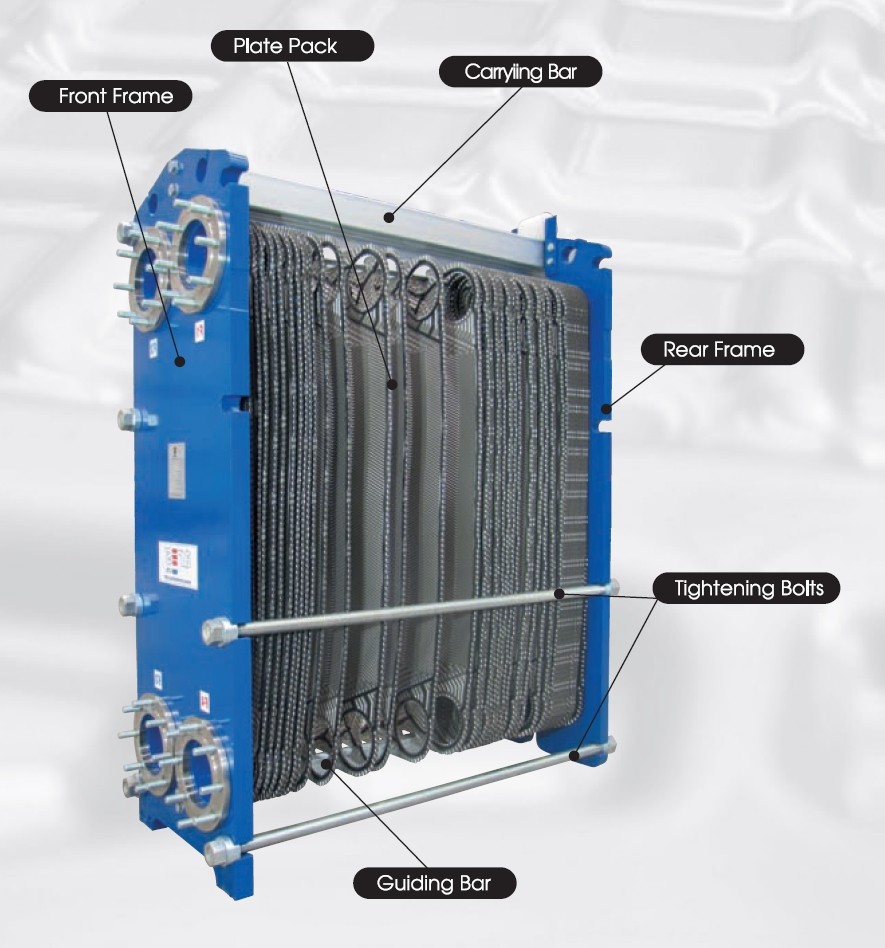

A plate heat exchanger consists of a frame, which consists of a front frame, rear (movable) frame, carrying bar, guiding bar, and a number of tie bolts depending on the type of the plate heat exchanger. In between front and rear frame, a number of plates that are pressed together sealed by a rubber gasket. The plate pack is placed between the two frames, it is tightened to a minimum distance which allows the plate heat exchanger to be operated under certain pressures. The heat is transferred from one medium to another one through the plates. The hot and cold medium flows between each of the plates and then they exchange their heat without mixing each other.

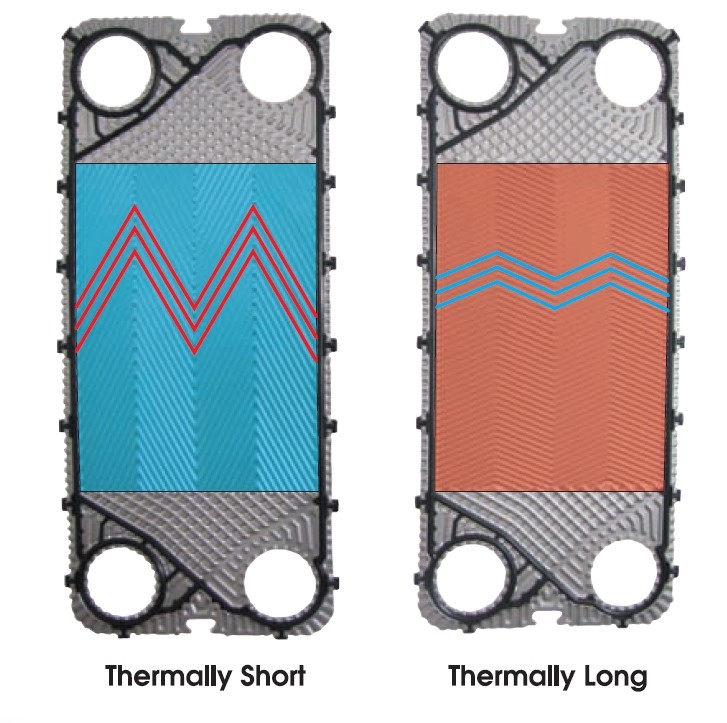

One of the most important parts of the plate heat exchangers is the plate itself. The plates are pressed from various materials such as stainless steel 304, stainless steel 316, SMO grade stainless, Hastelloy or pure titanium. Each plate is specially designed with pressed corrugations creating turbulence to achieve the highest possible heat transfer rates. The material of the plates depends on the medium passing through the plate heat exchanger. It is very important that the medium must be suitable for the plate material otherwise aggressive mediums can damage and corrode the plates. Thickness of the plates differ depending on the type of plate heat exchanger application and working pressure. The plate thickness range between 0.4mm and 1mm.
.jpg "Plate Heat Exchanger Diagram")
.jpg "Gasket Plates for Heat Exchangers")
.jpg "Heat Transfer in Plate Heat Exchanger")
Industry Solutions
AUTOMOTIVE INDUSTRY
Hydraulic oil coolingPaint Treatment Phosphate solutions' coolingHeating of Quenching oilHeating of degreasing bathsHeating of Phosphatising baths
HVAC
District heating and coolingUnderfloor heatingHeating treatment waterHeating swimming poolsHeat pump applicationsHeat recovery installationsGeothermal applications Solar energy applicationsAirconditioning plantsTap water heating
TEXTILE INDUSTRY
Heat recovery from textile washing agentsHeating wool washing liquids Heating dyeing liquors Cooling of waste water
MARINE
Centralised engines' coolingTransmission oil coolingOn board HVAC systemsLubrication oil coolingLT and HT circuit coolingAuxilary system cooling
STEEL INDUSTRY
Mould coolingClosed loop cooling of continous casting machinesClosed loop cooling of electric arc furnace Closed loop cooling of blast furnace Cooling machine coolantsCooling of hydraulic and lube oils
PULP AND PAPER
Cooling of water waterCooling of spray waterWaste water evaporation
CHEMICAL INDUSTRY
Cooling various types of acidsClosed loop coolingCooling/heating of BrineWet Chlorine gas dryingEvaoratators and condensers
SUGAR INDUSTRY
Heating of raw juiceHeating of press waterHeating of limed juiceHeating of carbonated juiceHeating of thin juiceHeating of syrupsHeating/cooling of Molasses
EDIBLE OIL INDUSTRY
Bio-diesel applicationsHeating and cooling of vegetable oilCooling fatty acids
SURFACE TREATMENT
Galvanic Bathes coolingPaint heatingAcid bath thermal regulationCooling of electrolyteHeating of degreasing bathsHeating of Phosphatising baths
POWER
Cooling of co-generation plantsTurbine lube oil coolingHeat recovery from diesel plantsCooling transmission oilCirculating water coolingCondensate heaterGenerator bearing cooler
MACHINES
Closed loop coolingCooling of hydrauic and lube oilsClosed loop cooling of induction systems
